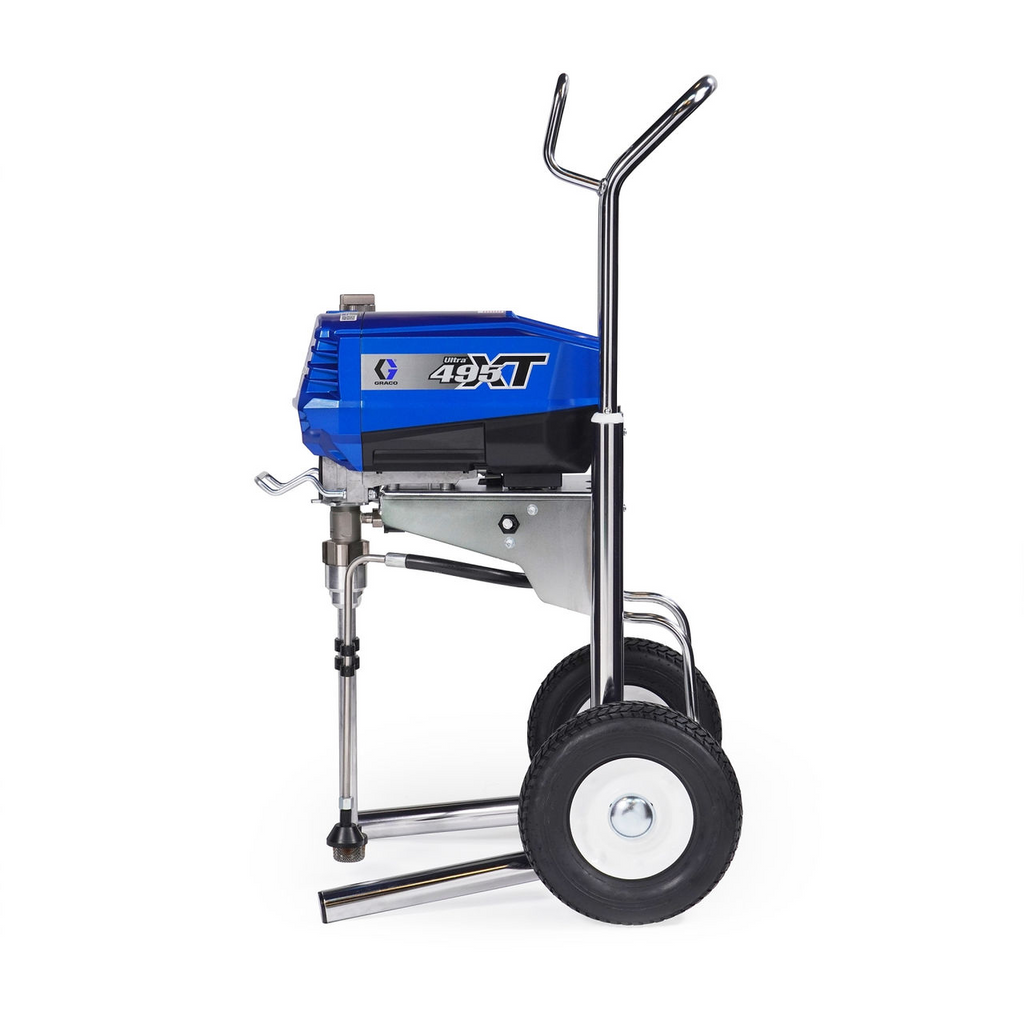

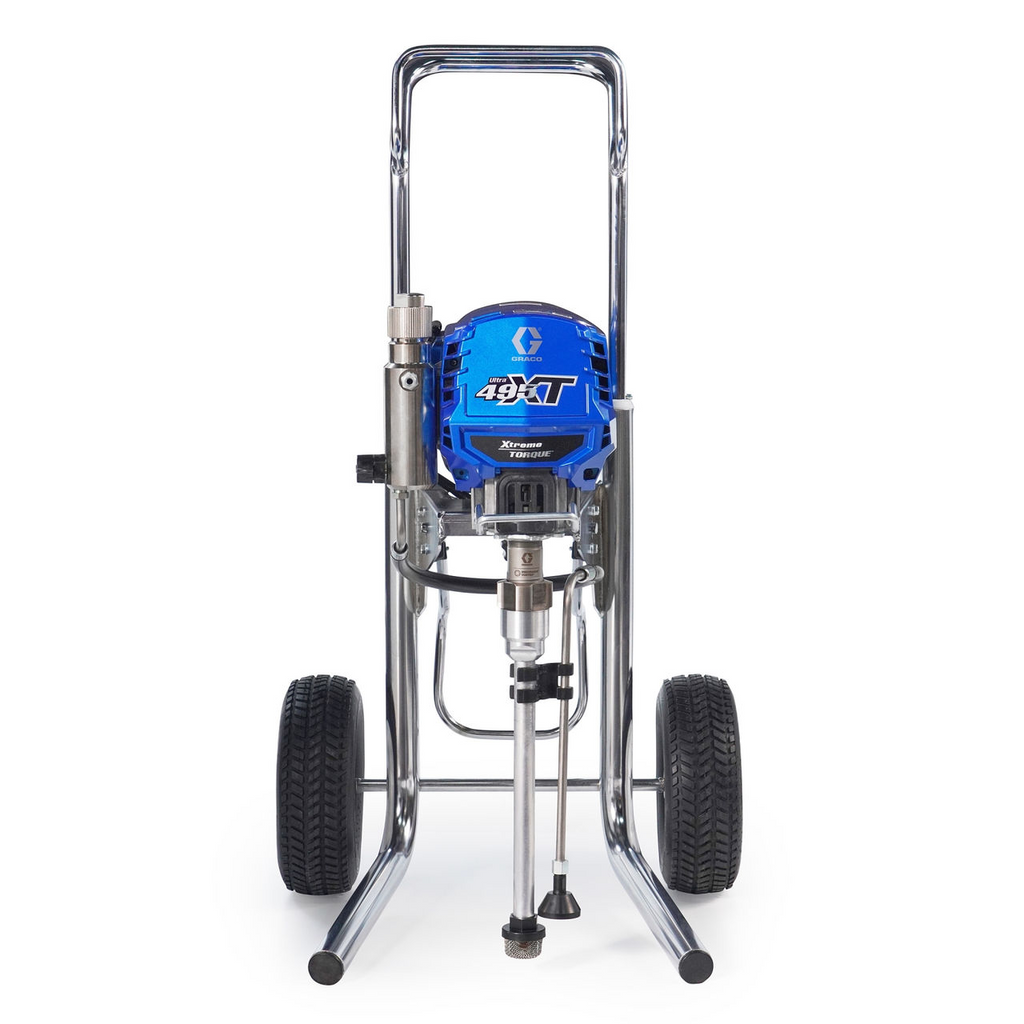

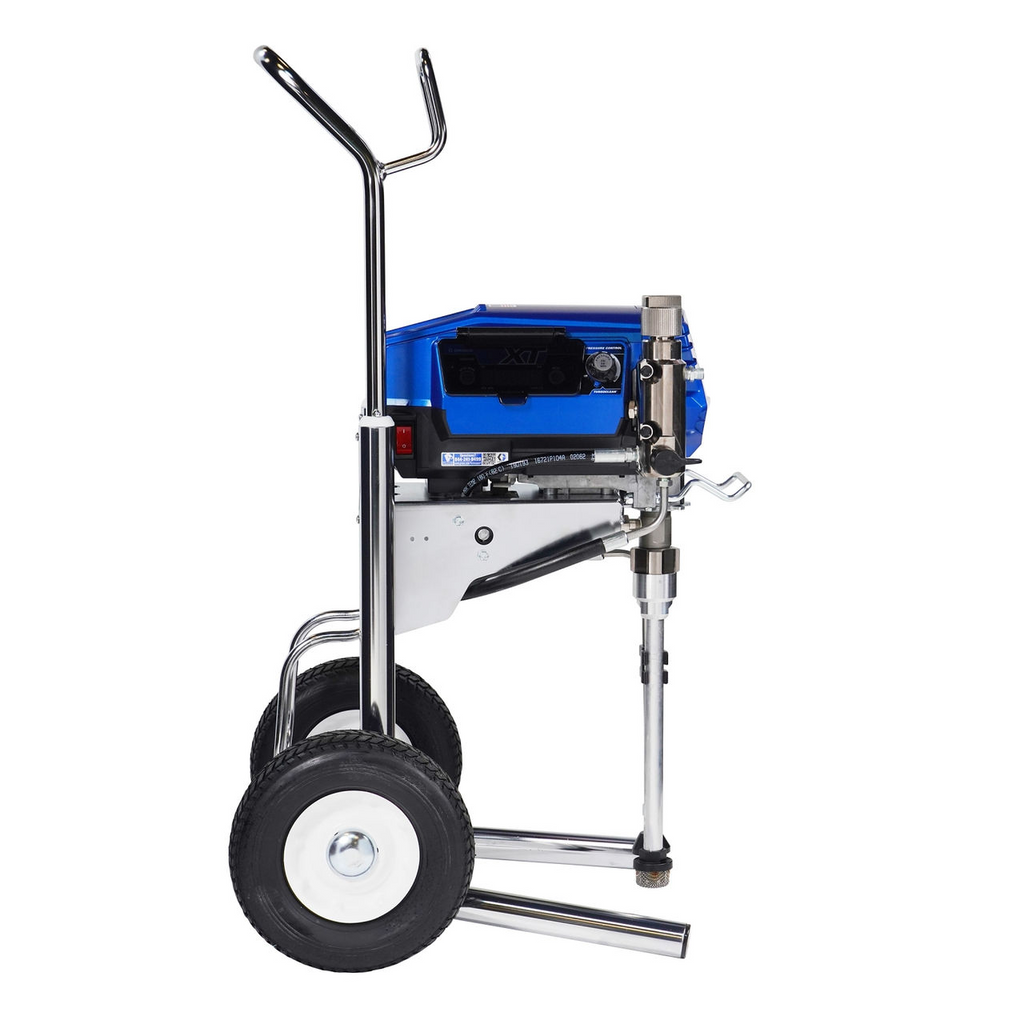

Graco Ultra 495 XT Electric Airless Sprayer Hi-Boy 19D533

Graco Ultra 495 XT Electric Airless Sprayer Hi-Boy 19D533

GRACO

$3,710.00

SKU: 19D533

Quantity

Out of stock

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Graco Ultra 495 XT Electric Airless Sprayer Hi-Boy 19D533

$3,710.00

Description

Graco Ultra 495 XT Electric Airless Sprayer Hi-Boy

The Ultra 495 XT delivers an airless spray experience like no other. Made in the USA with a 1.7 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, elevated performance, and the longest life pump in its class. The 495 XT is sure to become a staple in your fleet.

Compare Table

Click here to open table


		Ultra 490 XT	Ultra 495 XT	Ultra 650 XT	Ultra 695 XT	Ultra 795 XT	Ultra 1095 XT
MAXIMUM TIP SIZE		INCREASED TIP SUPPORT 0.025" Max Tip	INCREASED TIP SUPPORT 0.027" Max Tip	0.029" Max Tip	0.031" Max Tip	0.033" Max Tip	INCREASED TIP SUPPORT 0.037" Max Tip
MAXIMUM PSI (BAR)		3,300 (227)	3,300 (227)	3,300 (227)	3,300 (227)	3,300 (227)	3,300 (227)
MAXIMUM GPM (LPM)		3,300 (227)	3,300 (227)	3,300 (227)	3,300 (227)	3,300 (227)	3,300 (227)
XTREME TORQUE MOTOR (HP)		(1.3)	(1.7)	(1.9)	(2.1)	(2.3)	(2.7)
WEIGHT LB (KG)		31 (14) Stand	31 (14) Stand	69 (31) Hi-Boy	93 (42) Standard	94 (43) Standard	112 (51) Standard
GUN SUPPORT: 1 GUNS 2 GUNS 3 GUNS		0.025" –	0.027" -	0.029" 0.019"	0.031" 0.023"	0.033" 0.025" 0.019"	0.037" 0.029" 0.023"
SERIES TYPE		MIDSIZE			STANDARD	STANDARD	STANDARD
MODEL	Cart Design – Part Number	Stand – 19D531	Stand – 19D532 Lo-Boy –19D534 Hi-Boy –19D533	Lo-Boy – 20B327 Hi-Boy – 20B328	Hi-Boy – 19F712	Hi-Boy – 19F715	Hi-Boy – 19F720
PUMP	NEW PISTON PUMP	Endurance Vortex	Endurance Vortex	Endurance Vortex	Endurance Vortex	Endurance Vortex	Endurance Vortex
	NEW VORTEX PISTON ROD	Chromex	Chromex	Chromex	Chromex	Chromex	Chromex
	SLEEVE	-	-	Hardened SST	Hardened SST	Hardened SST	Hardened SST
	NEW PROCONNECT REPLACEMENT SYSTEM	✓	✓	✓	✓	✓	✓
FEATURES	NEWRAPID-RESPONSE PRESSURE CONTROL	✓	✓	✓	✓	✓	✓
	NEWSELECTABLE PERFORMANCE MODES	✓	✓	✓	✓	✓	✓
	NEW LED DISPLAY	✓	✓	✓	✓	✓	✓
	NEW TURBOCLEAN	✓	✓	✓	✓	✓	✓
	NEW WATCHDOG PUMP PROTECTION	✓	✓	✓	✓	✓	✓
	EASY OUT FILTER (60 MESH)	✓	✓	✓	✓	✓	✓
	NEW QUIKREEL HOSE REEL				Optional	Optional	Optional
	NEW SMARTDISPLAY XT	Optional	Optional	Optional	Optional	Optional	Optional
	FLAT PROOF TIRES				Optional	Optional	Optional
	CRUSHPROOF INLET STRAINER				Optional	Optional	Optional
	CONTRACTOR PC GUN	✓	✓	✓	✓	✓	✓
	SWITCHTIP	RAC X LP 517	RAC X LP 517	RAC X LP 517	RAC X LP 517	RAC X LP 517	RAC X LP 517
	HOSE	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
WEAR PARTS	REPLACEMENT PUMP	19D873	19D873	2002382	2001548 / 2001549*	2001573 / 2001574*	2001550 / 2001551*
WEAR PARTS	REPAIR KIT	18B260	18B260	18B260	248212 / 17H838**	248212 / 17H838**	248213 / 17H839**

Videos

Specifications

Maximum Tip Size: 0.027 inches

Maximum Flow: 2.65 l/min (0.7 GPM)

Maximum Pressure: 3300 PSI (227 bar)

Motor Power: 1.7 HP (1268 Watts)

Weight: 39.92 kg (88 lbs)

Voltage: 240V

Features

Xtreme Torque Motor Technology

15X more torque than traditional motors
8X more magnets provide unmatched power and performance
90% lower running speeds extend motors life
10X quieter

RapidResponse Control

Instantly responds to deliver the best finish quality
More performance across its full tip size range
Industry's largest operating pressure range (50-3,300 psi)

Selectable Performance Modes

Two selectable spray modes offer unique performance levels to boost efficiency on every job
Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)

Easy-to-Read LED Digital Display

Visible in even the toughest spraying conditions

Endurance Vortex Piston Pump with ProConnect

Endurance Vortex Rod lasts 3X longer than the closest competitor
ProConnect Pump Removal for fast on-the-job service

TurboClean Cleaning System

Industry’s fastest pump cleaning system
Delivers 6X faster cleaning with 1/2 the water
Convenient location

WatchDog Pump Protection

Prevents damage by shutting off pump when it's time to refill

Durable Filtration

Easy Out Filter provides easy maintenance and less clogging

Easy Transport

Only 31 lbs (Stand)

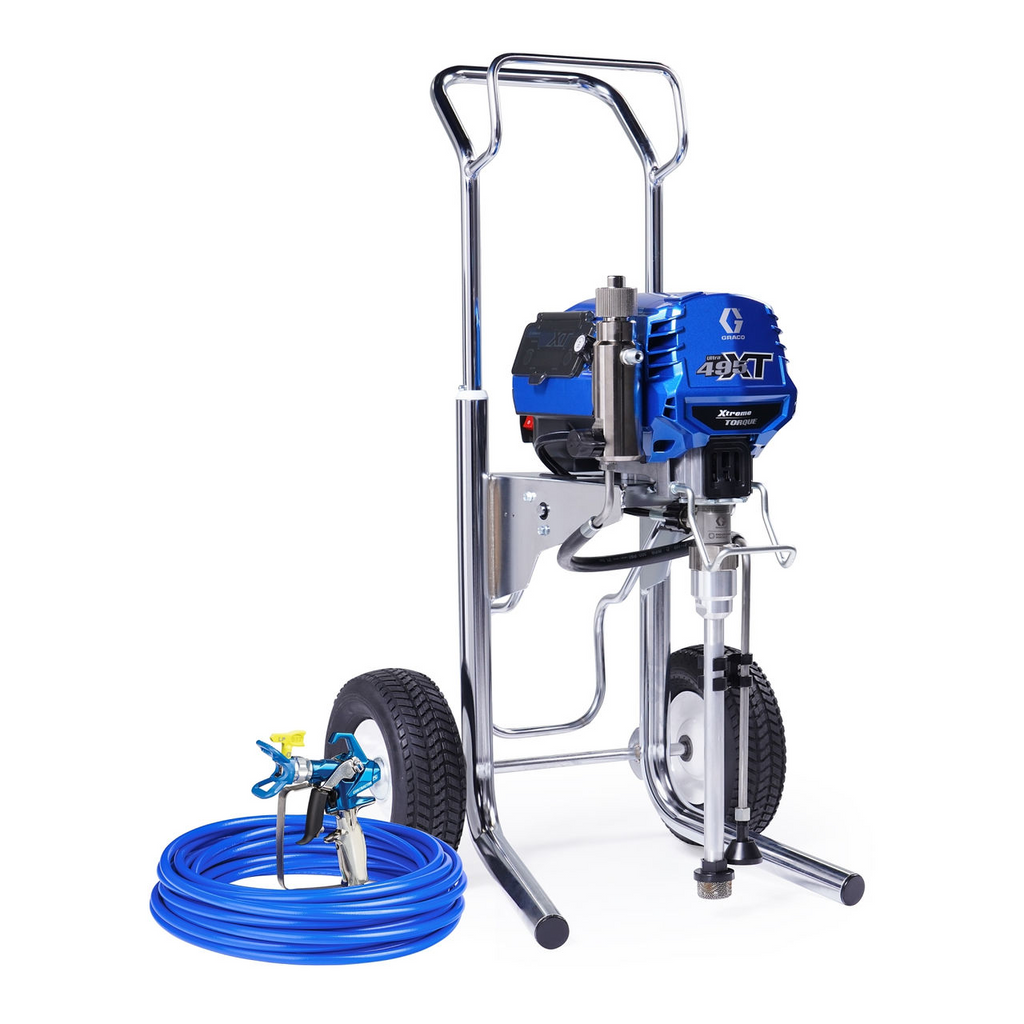

Gun, Hose and Tip Included

Contractor PC Gun & RAC X LP 517 SwitchTip

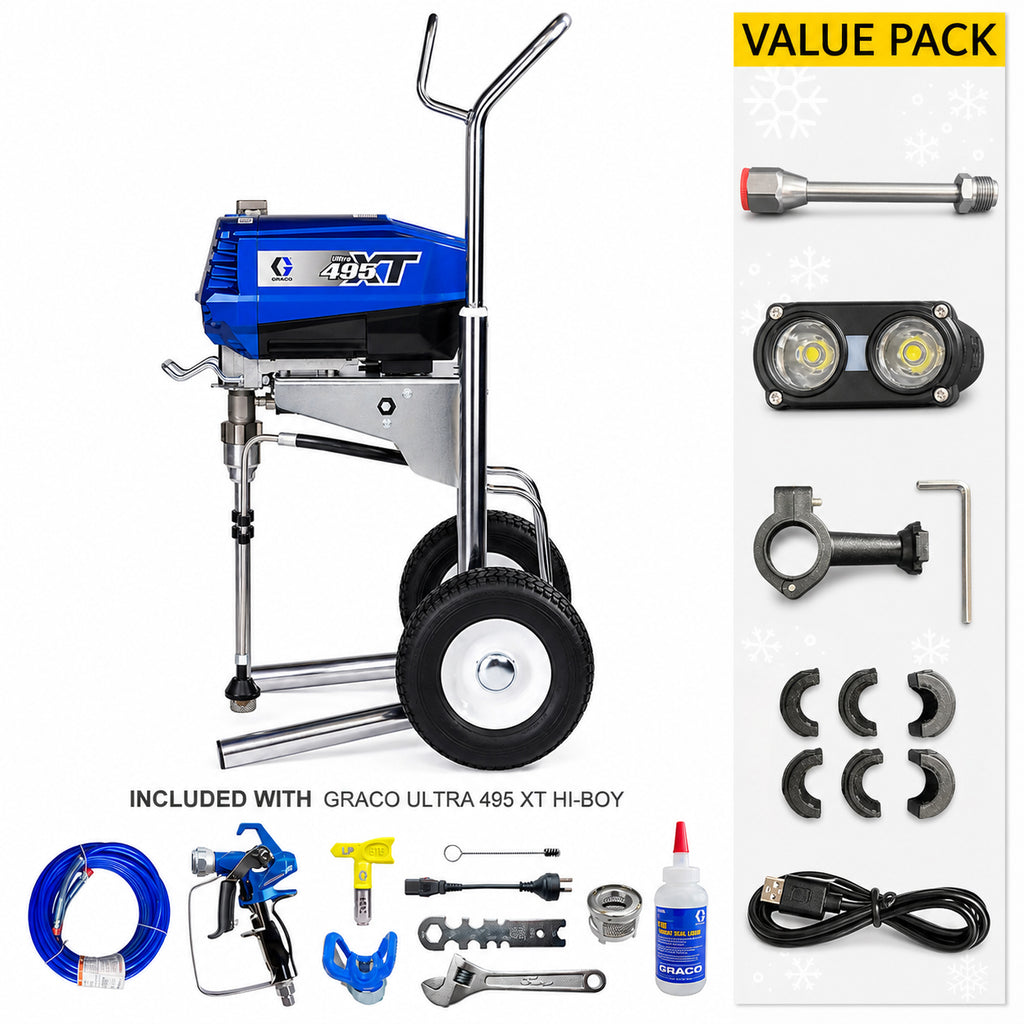

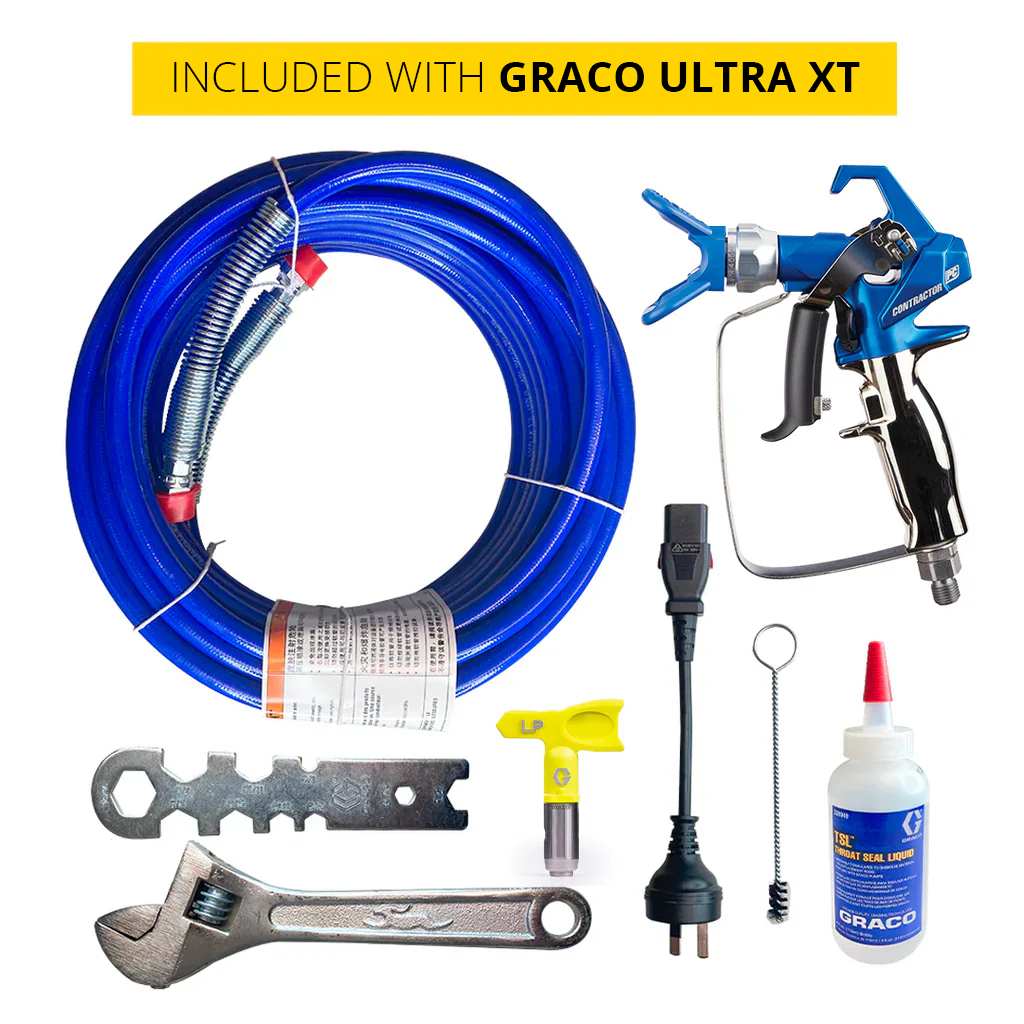

What's Included

Contractor PC Spray Gun

RAC X LP 517 SwitchTip

RAC X HandTite Tip Guard

BlueMax II Airless Hose (1/4 inch x 50 feet)

CrushProof Inlet Strainer

FlatProof Tires

Reviews

FAQ

What is the purpose of the Rapid-Response Pressure Control?

The Rapid-Response Pressure Control provides the steadiest spray pressure across its wide operating range (50-3,300 psi), ensuring a consistent and high-quality finish. This system instantly responds to pressure changes to maintain optimal performance.

How does the selectable performance mode benefit the user?

Selectable performance modes allow you to switch between low pressure (50-2,000 psi) for more control and high pressure (500-3,300 psi) for more demanding tasks. This versatility makes the sprayer suitable for a wide range of applications, effectively functioning like two sprayers in one.

What materials can the Graco Ultra 495 XT handle?

This sprayer is designed to handle a variety of materials, including latex, enamels, stains, primers, and lacquers. Its robust build and versatile pressure settings make it suitable for both residential and commercial projects.

How does the Endurance Vortex Piston Pump improve the sprayer's performance?

The Endurance Vortex Piston Pump uses Vortex rod technology that rotates to ensure even wear, significantly extending the life of the pump. This feature, combined with the ProConnect system, ensures the sprayer remains operational with minimal downtime.

Is the Graco Ultra 495 XT easy to transport?

Yes, the Graco Ultra 495 XT is designed for easy transport. It is available in different configurations, including stand and Hi-Boy models, with the Hi-Boy version featuring pneumatic wheels for easier mobility around the job site.
