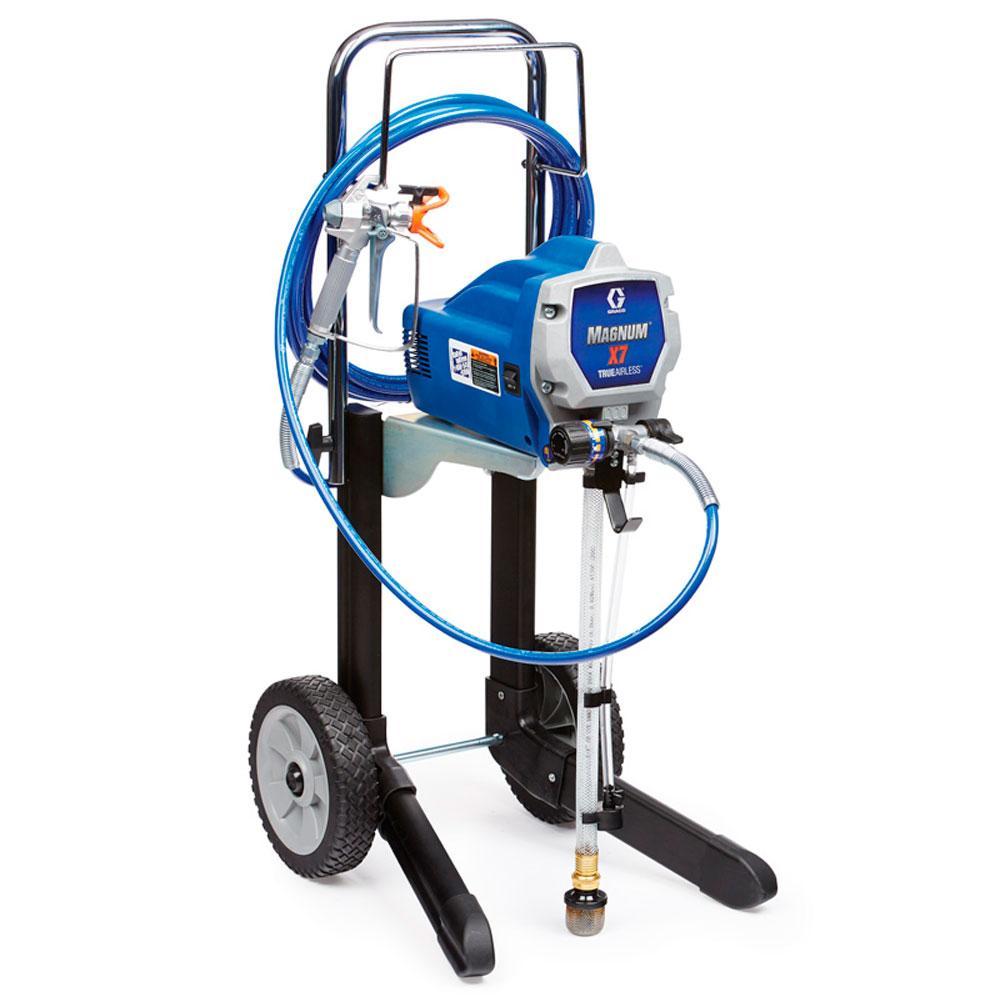

Graco Magnum X7 Electric Airless Sprayer (16W121)

Graco Magnum X7 Electric Airless Sprayer (16W121)

GRACO

$631.00

SKU: 16W121

Title

Quantity

Out of stock

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Graco Magnum X7 Electric Airless Sprayer (16W121)

$631.00

Description

Graco Magnum X7 Electric Airless Sprayer now known as LTS 17

1 Gun to 0.017 Tip / 1.17 lpm / 3,000 psi
5/8 hp DC motor
New quick prime feature
Compact cart design
7.5 m DuraFlex hose (max supported hose length 30m) (please buy optional hoses here)
Weight 11kg

LIGHT-DUTY Airless Paint Sprayer

Finish projects fast!

The X7 model supports up to a .017 spray tip. It's a great choice for the serious do-it-yourselfer, handyman or remodeling contractor with occasional (quarterly) painting needs. Ideal for interior and exterior applications when using light to medium coatings.

Pump directly from 1 or 5 gallon paint containers
Paint Saver pail hook allows movement of 5 gal container with cart and keeps pail level, minimizing spills when on the move

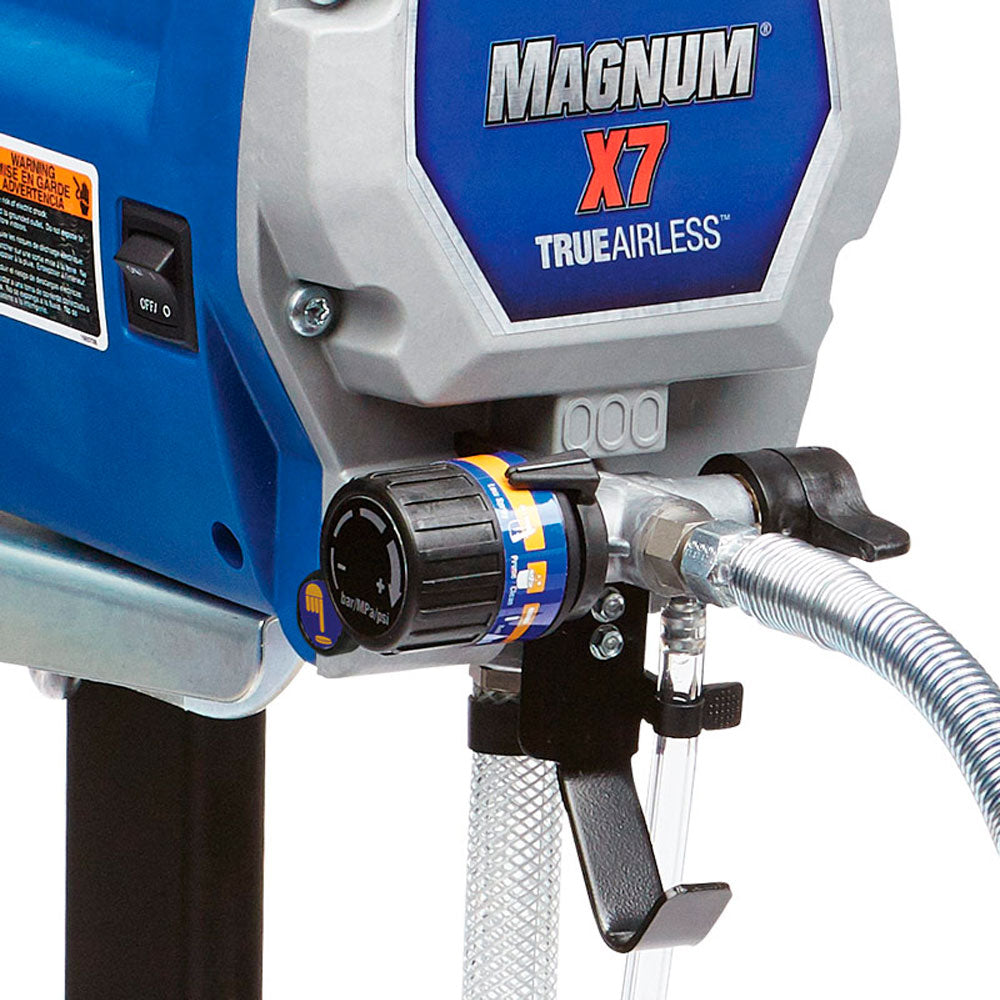

Pressure control with user-friendly symbols for simple selection of operating modes
Hardened stainless steel piston pump, innovative single packing set, lifetime lubricated pad for maintenance-free operation
Durable, easy-to-clean cart with handle that folds down for compact storage
Built-in hose rack holds up to 100 ft (30 m) of hose
Power Flush cleaning adapter for fast cleanup
AutoPrime feature reduces any priming problems associated with debris or poor clean-up after previous jobs
PowerPlug cord-end lights up to indicate good power source

Ideal uses for the Magnum X7:

Interiors
Exteriors
Fences
Houses
Decks

Not designed for commercial use. Not covered by commercial warranty.

Recommended for occasional use up to 500 litres per year

Magnum Quick Start Guide

Compare Table

Click here to open table


	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19
Warranty	1 year	1 year	1 year	1 year	1 year	1 year	1 year	1 year
Part Numbers:	26D521	26D522	26D528	16W119	16W120	16W121	17H203	17H210
Recommended Annual Usage(Litres per year)*	95 litres	95 litres	95 litres	190 litres	475 litres	475 litres	1135 litres	1895 litres
Maximum Spray Tip Size	.015	.015	.015	.015	.015	.017	.017	.019
Max. pressure - bar (PSI)	103(1500)	103(1500)	103(1500)	193(2800)	207(3000)	207(3000)	207(3000)	207(3000)
Performance Rating (lpm=Litres per minute)	0.76	0.76	0.76	0.91	1.02	1.17	1.29	1.44
Maximum Hose Length (m)	N/A	N/A	N/A	15	23	30	46	46
Motor	AC	AC	AC	0.375 hp Universal	0.5 hp Universal	0.625 hp Universal	0.750 hp DC	0.875 hp DC
Sprayer Weight (kg)	2.18	3.34	3.04	4.5	5.9	10.4	12.2	17.2
Piston Pump	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Hardened Stainless Steel	Hardened Stainless Steel	ProX Power Piston Pump	ProX Power Piston Pump
Spray Gun	N/A	N/A	N/A	Metal SG2	Metal SG2	Metal SG2	Metal SG3	Metal SG3
Spray Tip	10 & 30 cm	10 & 30 cm	10 & 30 cm	515	515	515	515	515
Paint Hose	N/A	N/A	N/A	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 15 m	6.4 mm x 15 m
Pump Armor	No	No	No	Yes	Yes	Yes	Yes	Yes
Quick Start Guide	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Pulls directly from 1 to 15 Litre container				■	■	■	■	■
Fastest way to complete small painting projects	■	■	■
Variable Pressure Control			■	■	■	■	■	■
PushPrimeTM – Helps reduce priming problems due to debris/poor cleaning					■	■	■	■
Filter – Filter debris in paint to reduce Spray Tip plugs	■	■	■	■	■	■	■	■
Pump Filter – Extra filtration to improve finish							■	■
Can spray turp and white spirit based materials							■	■
On-the-job Pump Repair							■	■
Power Flush – Connect to garden hose for fast clean-up				■	■	■	■	■
	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19


	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19
Warranty	1 year	1 year	1 year	1 year	1 year	1 year	1 year	1 year
Part Numbers:	26D521	26D522	26D528	16W119	16W120	16W121	17H203	17H210
Recommended Annual Usage(Litres per year)*	95 litres	95 litres	95 litres	190 litres	475 litres	475 litres	1135 litres	1895 litres
Maximum Spray Tip Size	.015	.015	.015	.015	.015	.017	.017	.019
Max. pressure - bar (PSI)	103(1500)	103(1500)	103(1500)	193(2800)	207(3000)	207(3000)	207(3000)	207(3000)
Performance Rating (lpm=Litres per minute)	0.76	0.76	0.76	0.91	1.02	1.17	1.29	1.44
Maximum Hose Length (m)	N/A	N/A	N/A	15	23	30	46	46
Motor	AC	AC	AC	0.375 hp Universal	0.5 hp Universal	0.625 hp Universal	0.750 hp DC	0.875 hp DC
Sprayer Weight (kg)	2.18	3.34	3.04	4.5	5.9	10.4	12.2	17.2
Piston Pump	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Hardened Stainless Steel	Hardened Stainless Steel	ProX Power Piston Pump	ProX Power Piston Pump
Spray Gun	N/A	N/A	N/A	Metal SG2	Metal SG2	Metal SG2	Metal SG3	Metal SG3
Spray Tip	10 & 30 cm	10 & 30 cm	10 & 30 cm	515	515	515	515	515
Paint Hose	N/A	N/A	N/A	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 15 m	6.4 mm x 15 m
Pump Armor	No	No	No	Yes	Yes	Yes	Yes	Yes
Quick Start Guide	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Pulls directly from 1 to 15 Litre container				■	■	■	■	■
Fastest way to complete small painting projects	■	■	■
Variable Pressure Control			■	■	■	■	■	■
PushPrimeTM – Helps reduce priming problems due to debris/poor cleaning					■	■	■	■
Filter – Filter debris in paint to reduce Spray Tip plugs	■	■	■	■	■	■	■	■
Pump Filter – Extra filtration to improve finish							■	■
Can spray turp and white spirit based materials							■	■
On-the-job Pump Repair							■	■
Power Flush – Connect to garden hose for fast clean-up				■	■	■	■	■
	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19

Videos

Specifications

Max. Delivery Rating	0.31 gpm (gallons per minute) (1.41 lpm (liters per minute))
Max. Hose Length	30 m (see optional hoses here)
Max. Operating Pressure	3000 psi (pounds per square inch) (207 bar)
Max. Tip Size	.017 inch
Motor Size	5/8 HP runs off a household current (15 Amp) or 1500 Watt generator
Sprayer Weight	23.3lbs (10.5 kg)

Features

	Demand Delivery System	The pump and motor automatically stop when spray gun trigger is released. Eliminates constant motor operation.
	Power Flush Cleaning	Quick easy cleanup. After using waterbase paints, simply connect to a garden hose and clean the pump, hose and gun in minutes.
	Pressure Control Knob	Pressure control with user-friendly symbols for simple selection of operating modes
	PowerPlug	PowerPlug cord-end lights up to indicate good power source
	Direct Immerse Siphon Set	Siphon tube accommodates 1- to 5-gallon (3.8 19 L) containers.
	SG2 Spray Gun	Well-balanced and lightweight, the SG2 Spray Gun features a light trigger pull for comfort and reduced fatigue.
	Power-Piston Pump	Simple piston pump design for reliable performance.
