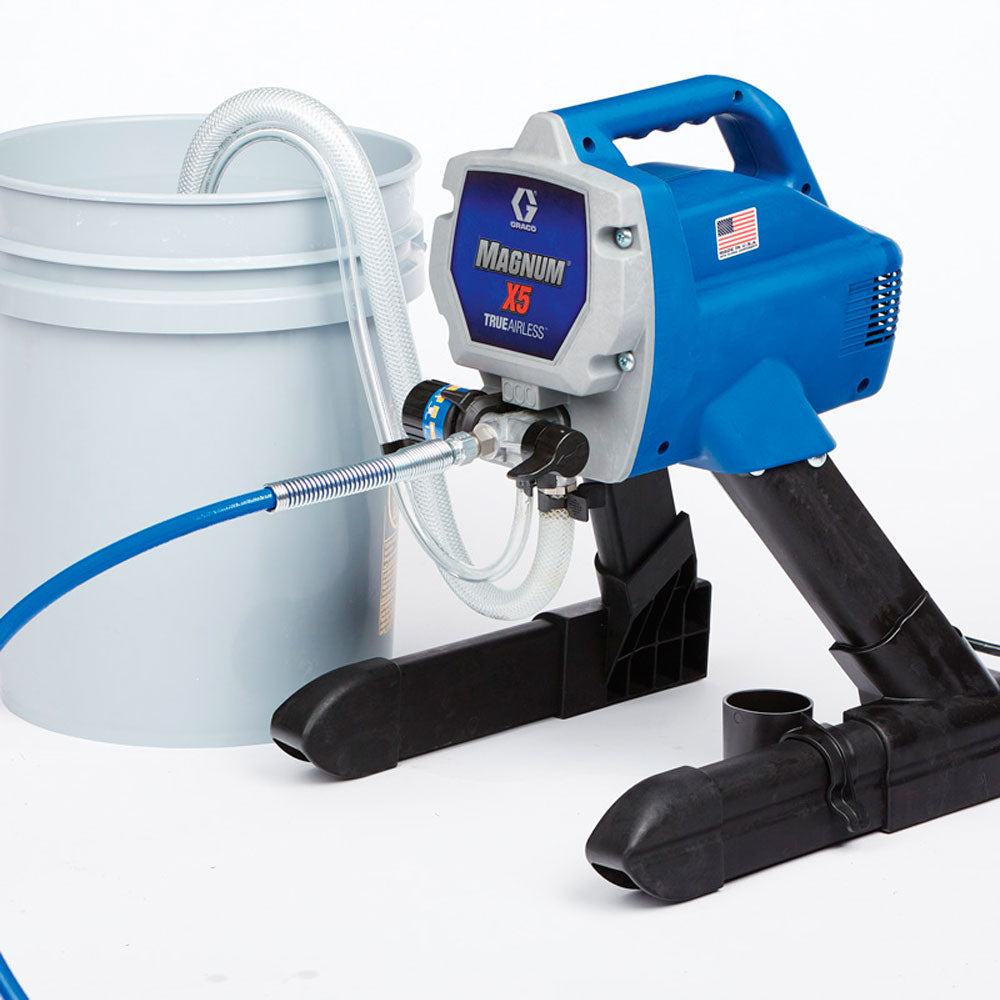

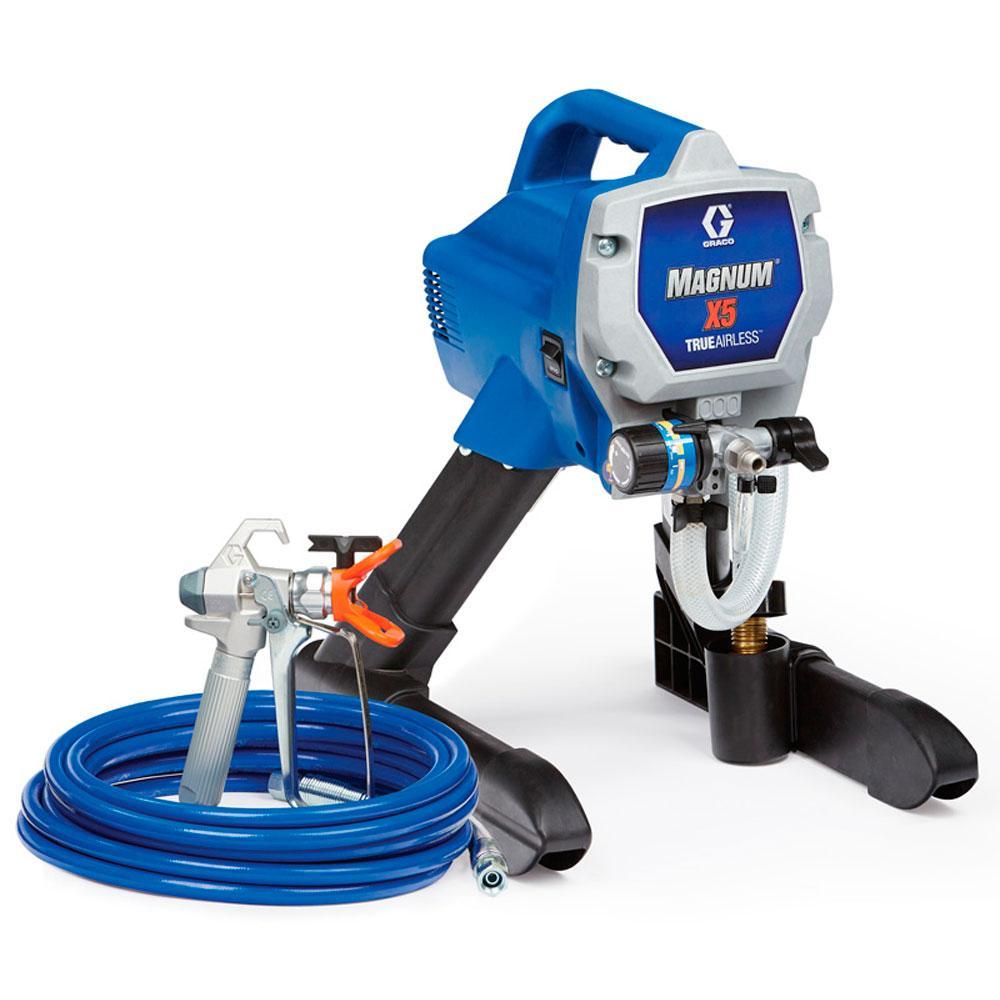

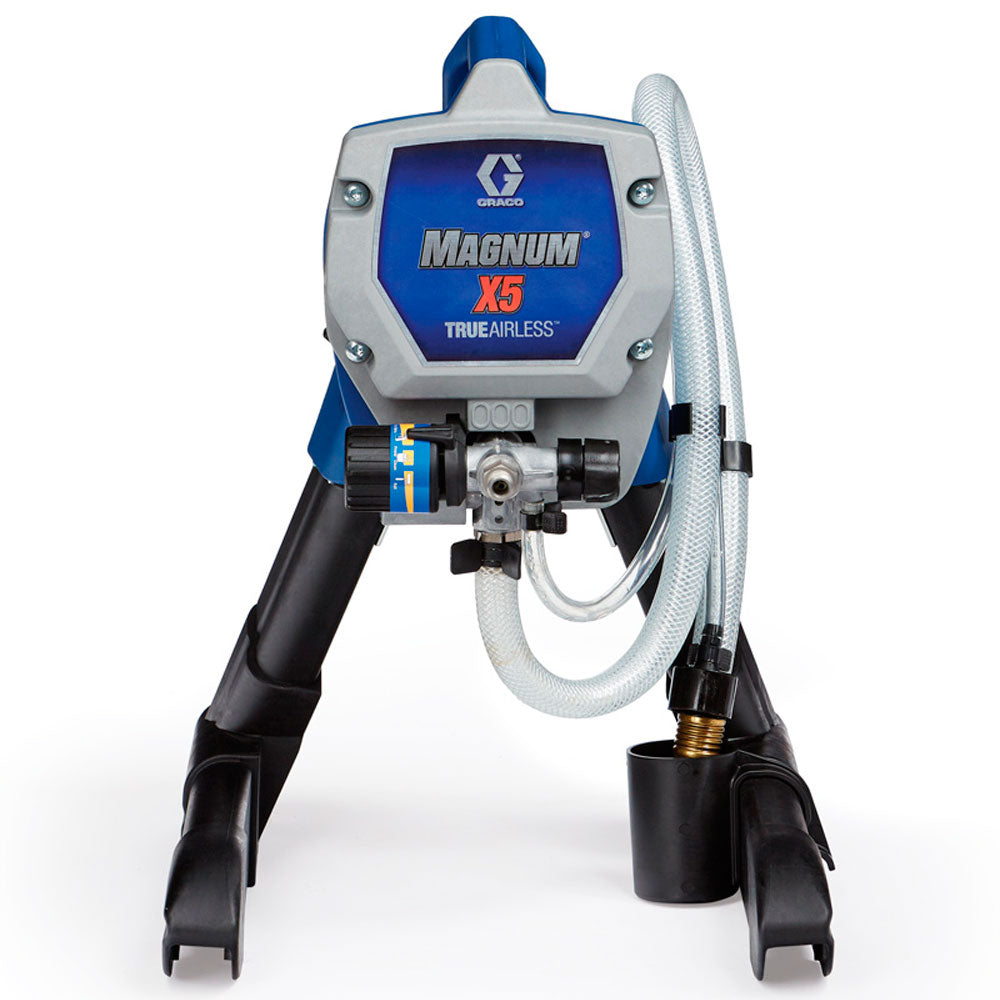

Graco Magnum X5 Electric Airless Paint Sprayer 16W120 - Special

GRACO
$539.00
SKU: 16W120-D1

Title

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco Magnum X5 Electric Airless Paint Sprayer 16W120 - Special
$539.00

Description

Graco Magnum X5 Electric Airless Paint Sprayer, now known as the LTS 15

Includes 1 free Graco Pump Armor Storage Fluid for Airless Paint Spray Guns 243104

Not designed for commercial use. Not covered by commercial warranty.

LIGHT-DUTY Airless Paint Sprayer

  • 1 Gun to 0.015Tip / 1.02 lpm / 3,000 psi
  • 1/2 hp DC Motor
  • SG2 Metal Gun
  • 7.5m x 6.4mm Hose
  • New quick prime feature
  • Compact Stand Design
  • Mas Hose length - 15m (please buy optional 15m hose here)
  • Weighs only 8kg

Recommended for occasional use: up to 500L per year

Finish projects faster!

The Magnum X5 provides spraying performance in a compact, portable design making it ideal for light-duty projects such as decks, fences, and other painting projects. The Magnum X5 supports longer hose lengths so you can extend your reach on the job, and the piston pump assures dependability and longer sprayer life. Magnum X5 is easy to clean, too. Simply connect it to a garden hose and clean the pump, hose and gun in minutes.

  • For occasional use (4 to 6 times per year)
  • Ideal for homeowners and handymen with periodic painting projects around the house
  • Lightweight, portable, and easy to store
  • Sprays light to medium coatings from stains to latex
  • Pressure control knob allows you to easily set the proper pressure for spraying or rolling
  • Hardened stainless steel piston pump, innovative single packing set, lifetime lubricated pad for maintenance-free operation

    Includes everything you need to get started!

    Ideal uses for the Magnum X5:

    • Interiors
    • Exteriors
    • Fences
    • Houses
    • Decks



    Compare Table

    Click here to open table
    TrueCoat 360 TrueCoat 360 DSP TrueCoat 360 VSP Magnum Project Painter Plus Magnum X5 Magnum X7 Magnum ProX17 Magnum ProX19
    Warranty 1 year 1 year 1 year 1 year 1 year 1 year 1 year 1 year
    Part Numbers: 26D521 26D522 26D528 16W119 16W120 16W121 17H203 17H210
    Recommended Annual Usage(Litres per year)* 95 litres 95 litres 95 litres 190 litres 475 litres 475 litres 1135 litres 1895 litres
    Maximum Spray Tip Size .015 .015 .015 .015 .015 .017 .017 .019
    Max. pressure - bar (PSI) 103(1500) 103(1500) 103(1500) 193(2800) 207(3000) 207(3000) 207(3000) 207(3000)
    Performance Rating (lpm=Litres per minute) 0.76 0.76 0.76 0.91 1.02 1.17 1.29 1.44
    Maximum Hose Length (m) N/A N/A N/A 15 23 30 46 46
    Motor AC AC AC 0.375 hp Universal 0.5 hp Universal 0.625 hp Universal 0.750 hp DC 0.875 hp DC
    Sprayer Weight (kg) 2.18 3.34 3.04 4.5 5.9 10.4 12.2 17.2
    Piston Pump Stainless Steel Stainless Steel Stainless Steel Stainless Steel Hardened Stainless Steel Hardened Stainless Steel ProX Power Piston Pump ProX Power Piston Pump
    Spray Gun N/A N/A N/A Metal SG2 Metal SG2 Metal SG2 Metal SG3 Metal SG3
    Spray Tip 10 & 30 cm 10 & 30 cm 10 & 30 cm 515 515 515 515 515
    Paint Hose N/A N/A N/A 6.4 mm x 7.6 m 6.4 mm x 7.6 m 6.4 mm x 7.6 m 6.4 mm x 15 m 6.4 mm x 15 m
    Pump Armor No No No Yes Yes Yes Yes Yes
    Quick Start Guide Yes Yes Yes Yes Yes Yes Yes Yes
    Pulls directly from 1 to 15 Litre container ■ ■ ■ ■ ■
    Fastest way to complete small painting projects ■ ■ ■
    Variable Pressure Control ■ ■ ■ ■ ■ ■
    PushPrimeTM – Helps reduce priming problems due to debris/poor cleaning ■ ■ ■ ■
    Filter – Filter debris in paint to reduce Spray Tip plugs ■ ■ ■ ■ ■ ■ ■ ■
    Pump Filter – Extra filtration to improve finish ■ ■
    Can spray turp and white spirit based materials ■ ■
    On-the-job Pump Repair ■ ■
    Power Flush – Connect to garden hose for fast clean-up ■ ■ ■ ■ ■

    Videos

    Specifications

    • Max. Delivery Rating 0.27 gpm (gallons per minute) (1.22 lpm (liters per minute))
    • Max. Hose Length75 ft (23 m) (see optional 15m hose here)
    • Max. Operating Pressure 3000 psi (pounds per square inch) (207 bar)
    • Max. Tip Size 0.015 inch
    • Motor Size 1/2 HP runs off a household current (15 Amp) or 1500 Watt generator
    • Sprayer Weight 13.3 lbs (8 kg)

    Features

    Demand Delivery System
    The pump and motor automatically stop when spray gun trigger is released. Eliminates constant motor operation.

    Power Flush Cleaning
    Quick easy cleanup. After using waterbase paints, simply connect to a garden hose and clean the pump, hose and gun in minutes.

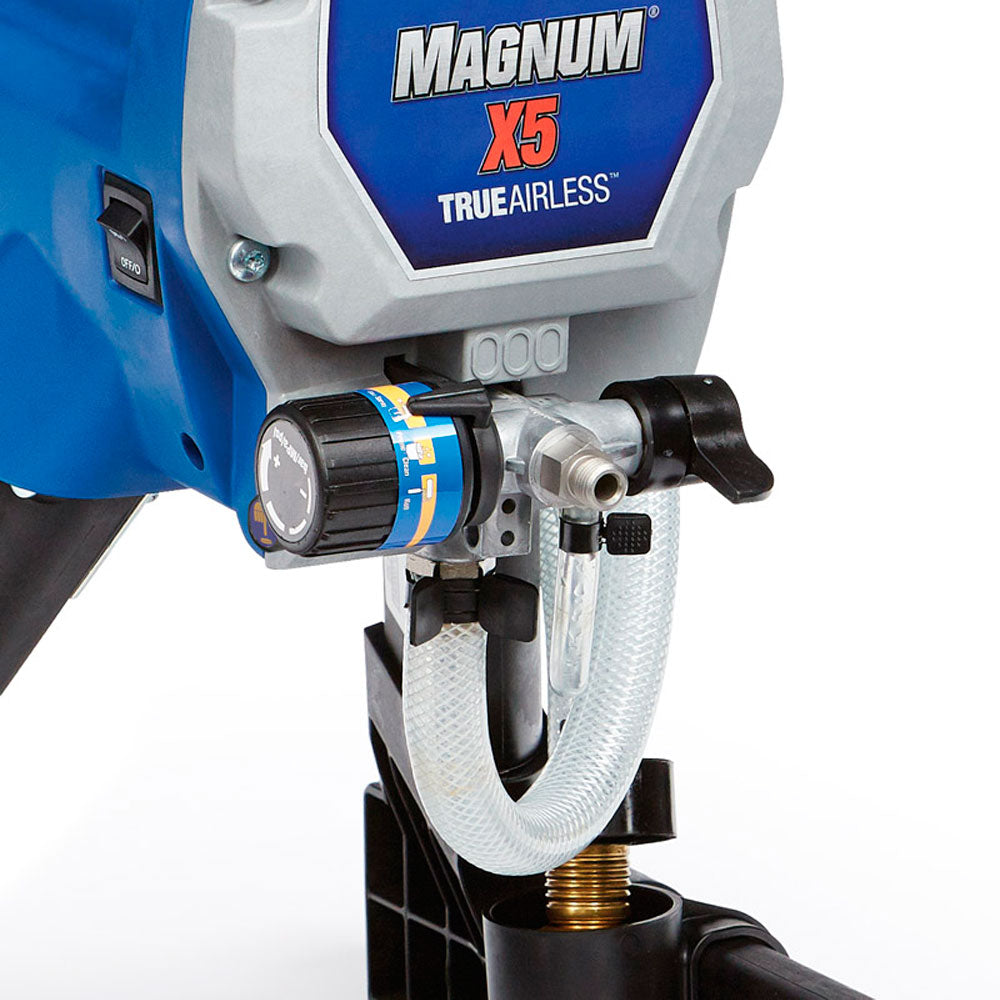

    Pressure Control Knob
    Pressure control with user-friendly symbols for simple selection of operating modes

    PowerPlug
    PowerPlug cord-end lights up to indicate good power source

    Flexible Siphon Hose
    Pump directly from 1 or 5 gallon paint container

    Stand Mount
    Durable stand mount is compact, lightweight and easy to transport

    SG2 Spray Gun
    Well-balanced and lightweight, the SG2 Spray Gun features a light trigger pull for comfort and reduced fatigue.

    Power-Piston Pump
    Simple piston pump design for reliable performance.

    What's Included

    SG2 Spray Gun

    7.5 m DuraFlex airless hose

    515 Reverse-A-Clean RAC IV tip

    Pump Armor storage fluid (8 oz.)

    Operational DVD and Quick Start-up Guide

    Reviews

    Dimensions

    Width
    Width
    Height
    Height
    Length
    Length
    product
    30.48 cm
    48.77 cm
    39.62 cm

    Weight

    Courier

    Easy To Carry

    Total Weight: 9.2 kg
