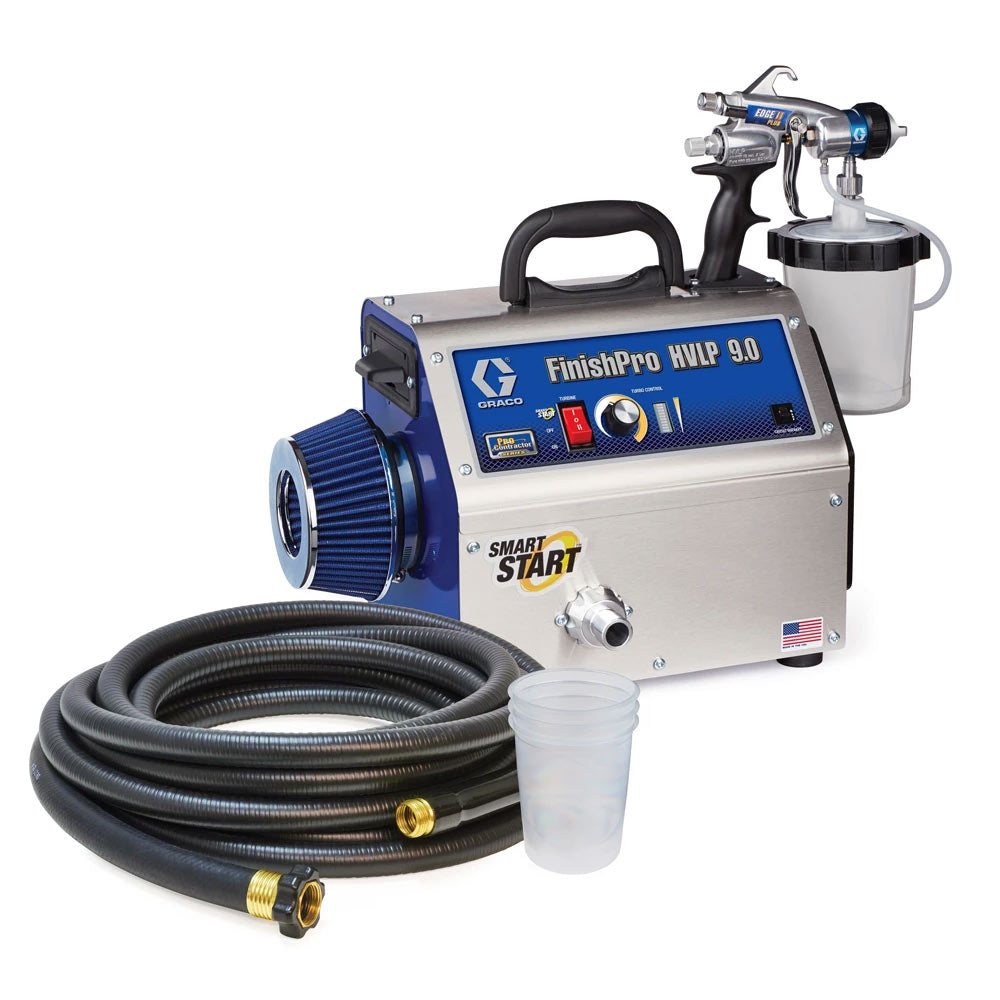

Graco FinishPro HVLP 9.0 5-Stage Turbine ProContractor Series Sprayer

GRACO

Save 10%

$1,894.00

SKU: 17R079

Title

Quantity

Out of stock

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Graco FinishPro HVLP 9.0 5-Stage Turbine ProContractor Series Sprayer

$1,894.00

Description

Graco FinishPro HVLP 9.0 5-Stage Turbine ProContractor Series Sprayer

PROCONTRACTOR SERIES

Ideal sprayer for small-to-medium jobs
Offers unmatched life with SmartStart
Loaded with features that offer convenience, control and produce a superior spray finish

Manual HVLP SPRAYS

Fine Finish Solutions Brochure

Compare Table

Click here to open table


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Turbine stages	3	5	3	5	5	5
Motor Watts/HP	1200/1.63	1300/1.77	1200/1.63	1300/1.77	1600/2.18	1800/2.45
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Turbine stages	3	5	3	5	5	5
Motor Watts/HP	1200/1.63	1300/1.77	1200/1.63	1300/1.77	1600/2.18	1800/2.45
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5

Specifications

SERIES - 9

TYPE - Air-Powered Sprayer

PRODUCT SERIES - ProContractor

WARRANTY - 3 years

TURBINE STAGES - 5

MOTOR WATTS/HP - 1300/1.77

MAXIMUM WORKING PRESSURE (BAR) - 0.62

MAXIMUM WORKING PRESSURE (PSI) - 9

Features

PROCONTRACTOR SERIES includes Standard features plus

SmartStart Turbine

Automatically shuts off when not in use so if you're not spraying, it's not running

Reduces jobsite noise, resulting in less fatigue

Automatic shut-off reduces heat and extends turbine life

TurboControl System with LED Display

Adjust the TurboForce turbine speed to match the performance you require

Reduces heat build up

Runs quieter

Extends turbine system life

50% longer hoses

EDGE II Plus Gun

Ultimate control with independent user controls for material volume, air flow, and spray fan size

Exclusive Graco air cap design increases the fluid flow in every need by 4X

Change out needles from the front of the gun with just a click

75% lighter trigger pull than the competition with EasyGlide

Learn More

Dual Filtration System

Premium automotive-grade filter provides industry-leading, high performance filtration

Outperforms foam and traditional paper filters used on most HVLP systems

Compact and Durable Body

Rugged all steel enclosure protects the turbine on the job and during transport

On-board gun and cup holder allows for easy transport and paint refills with less spills

Separate utility toolbox built-in for needle storage

What's Included

FinishPro HVLP 9.0 ProContractor, includes:

EDGE II Plus Gun
1 qt (1 l) Cup with FlexLiner
#3 & #4 Quick Release Fluid Sets
30 ft (9 m) Super-Flex Air Hose

Reviews

Dimensions

product

39.37 cm

50.80 cm

48.26 cm

Weight

Easy To Carry

Total Weight: 18.14 kg
