Graco Airless LineLazer RAC 5 Switch-Tip Yellow

GRACO
$42.00
SKU: LL5213

Type

Sizes

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco Airless LineLazer RAC 5 Switch-Tip Yellow
$42.00

Description

Graco Airless LineLazer RAC 5 Switch-Tip Yellow

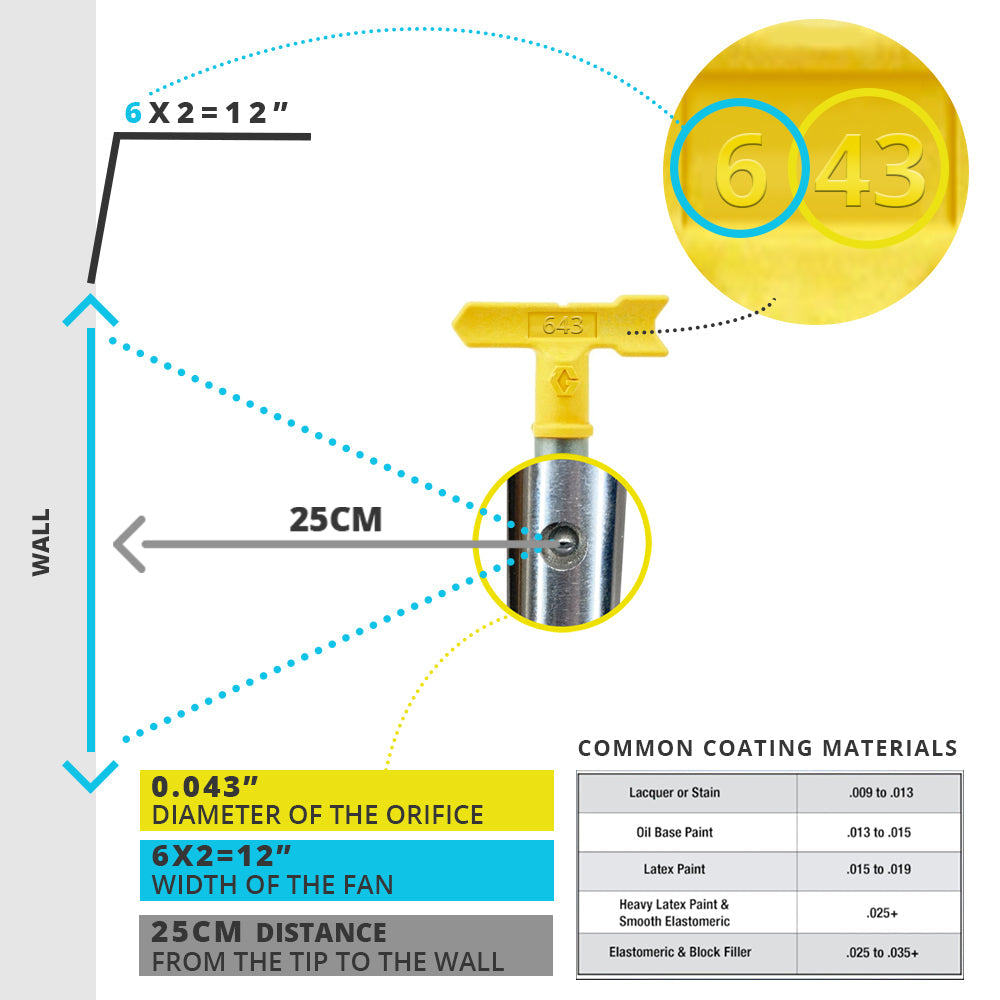

Quick Guide to Understanding Airless Spray Tips: E.g. 517. 5 is the fan size in inches and is doubled (ie. 10 inches). 17 is the orifice size in thousandths of an inch. So a 517 will spray 10 inches wide through an orifice the size of 17 thousandths of an inch. Using that formula, a 413 tip would spray 8 inches wide through an orifice of 13 thousandths of an inch. Choosing the right tip for the right job is crucial!


Water @ 2000 psi (138 bar, 13.8 MPa) - paints with a higher viscosity will decrease the flow rate

Example: for a tip with a .015 orifice and a 102 mm (4 in) pattern, order LL5215.
Fan width of a spray pattern is measured at 152 mm (6 in) from the surface



For resources, guides, instruction manuals, and more click below:

SPRAY TIP APPLICATION GUIDE: WHICH TIP TO USE FOR WHAT PAINT/SURFACE

MAGNUM SPRAYER TIP SELECTOR GUIDE

Specifications

***DUE TO THE VAST AMOUNT OF DIFFERENT TIP OPTIONS, WE DO NOT CARRY ALL IN STOCK SO PLEASE ALLOW AT LEAST 7 DAYS FOR SHIPPING. PLEASE INQUIRE BEFORE ORDERING IF NEEDED URGENTLY.***


Fan Width (mm)
Orifice (1/1000 in.)Flow Lpm102-152152-203203-254254-305
.013.69213
.015.90215315
.0171.15217317417
.0191.5219319419
.0211.8321421621
.0232.15323423623
.0252.5325425625
.0272.96327427627
.0293.42329429629
.0313.90331431631
.0334.42333
.0354.98335435635
.0396.18339439639
.0437.51343443643
.05512.29355

Features

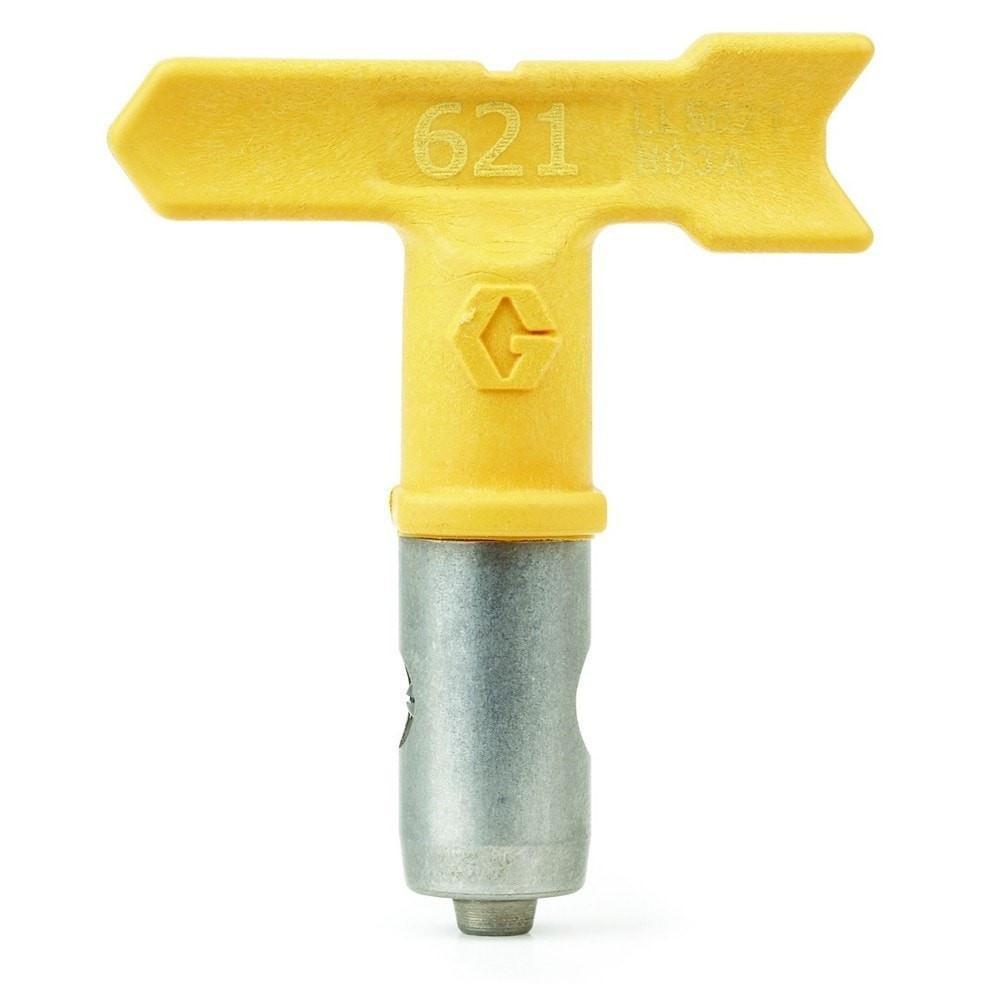

LineLazer' RAC 5 SwitchTip (Yellow Handle)

' Creates clean, laser-sharp lines with no fuzzy edges or thin spots.
' Designed specifically for parking lots, roads, warehouse floors, crosswalks and athletic fields.
' Sprays heavy water-base to thin alkyd traffic paints.
' Ensures consistent paint thickness, from edge to edge, less overspray and long-lasting lines.
